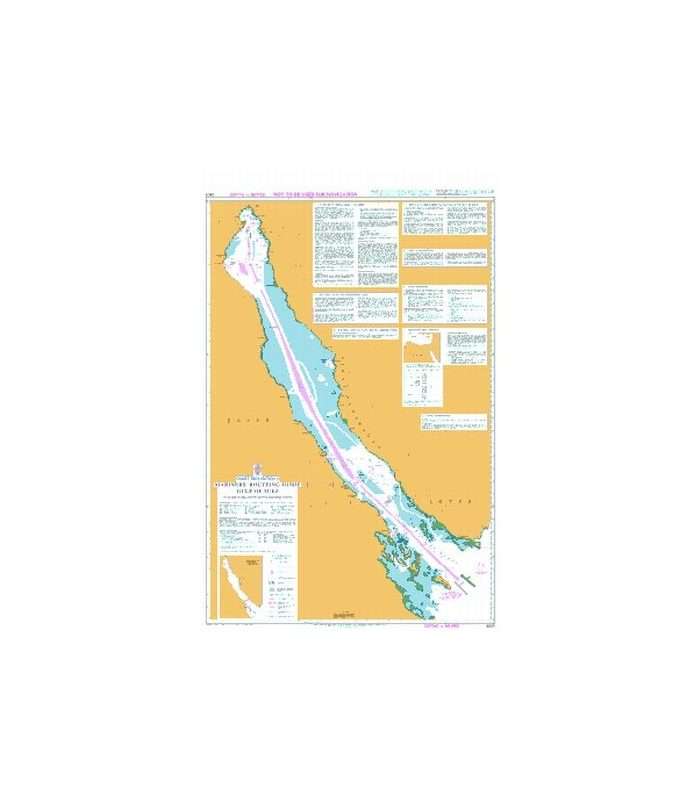

British Admiralty Nautical Chart 5501 Mariners’ Routeing Guide – Gulf of Suez

Chart 5501

Main Chart Details

• Chart Title: Mariners’ Routeing Guide – Gulf of Suez
• Publication Date: 29/05/1997
• Latest Edition date: 05/03/2009
• Chart Size: 680 x 1017 (mm)

Chart Panel Details

• Panel Name Mariners Routeing Guide Gulf of Suez
• Area Name Gulf of Suez
• Natural Scale 300000
• North Limit 30 00′.00N
• East Limit 34 20′.00E
• South Limit 27 15′.00N
• West Limit 32 15′.00E

Co-ordinates given are usually those of the four extremities of the chart. In many cases not all the area within will be fully charted*.Customers should check that the chart meets their requirements by viewing the chart image (where available).Mariners should always use the largest scale navigational chart available.

*Reasons may include

• Continuation of coverage of a small part outside the main area of chart coverage e.g a river.
• Inset plans and the chart title block and notes also take up space, therefore geographical information cannot be shown in this area.
• A need to refer to larger scale of chart, such waters are often “blued out” to avoid excessive maintenance work applying numerous NM corrections to an area of the small scale chart where the navigator will be using a larger scale chart.
• Coverage is better served from a different chart because of typical routeings
