Product Specification
SHIP STABILITY, DRAFT & TRIM CALCULATIONS FOR WINDOWS A simple to use but powerful Ship stability program for the the IBM PC and compatibles running Windows. Written with the user in mind, PC STABILITY for WINDOWS give easy access to functions with user friendly input boxes and buttons. A general purpose Stability,Draft & Trim program designed for single hull merchant ships, the program is designed around a simple menu system for ease of use and easy customisation to most ships. Ship data may be in metric or Imperial units. Once entered, dhip’s data is saved on disk and may be recalled at any time. Up to 99 ships may be held on disk subject to space being available, and each new ship is automatically inserted in the menu. For each ship
the program can accommodate a maximum of:-99 Cargo/Stores spaces. 99 Tanks. 99 Draft & Displacement Data points. 99 Draft & Safety criteria (Deadweight Moments,Maximum KG,Minimum GM) points. 99 Draft & KM data points. 99 Draft & LCF data points. 99 Draft & LCB data points. 99 Draft & trimming moment data points. 99 Draft and KN data points. Up to 999 voyages (Tank, Cargo and Store weights etc) may be saved per ship.

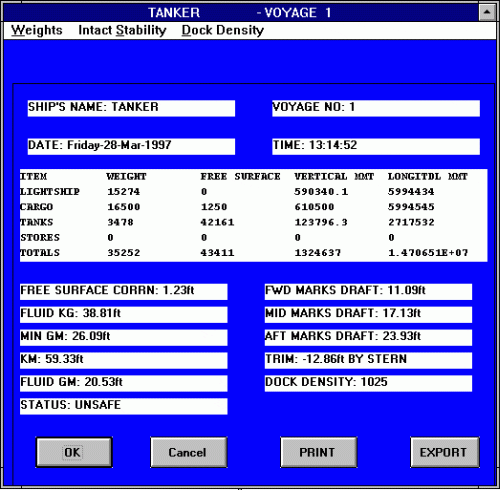

New voyages are automatically inserted in the voyage menu. The program outputs (according to your choice):- Displacement, Vertical moments, Longitudinal moments, Free Surface, Free Surface correction, Fluid KG, Mean Draft, Trim, Trimmed drafts, Fluid GM, Deadweight Moments, Compliance with Safety Data, GZ values and intact stability graph. Easy entry of data is another asset of the program.
